A leak in the capsule area can be caused by a misaligned or punctured capsule. It may also be a blocked puncture needle.
- Turn the machine to "OFF".
- Open the lever.
- Remove capsule (if applicable).
- Wipe the area with a clean dry cloth.
- Inspect the puncture needle - if it is blocked with old coffee grounds, use a soft brush to gently clean it.
If this does not resolve the problem, please contact us using the Live Chat in the bottom right or call our Nespresso team on 0808 100 5000.

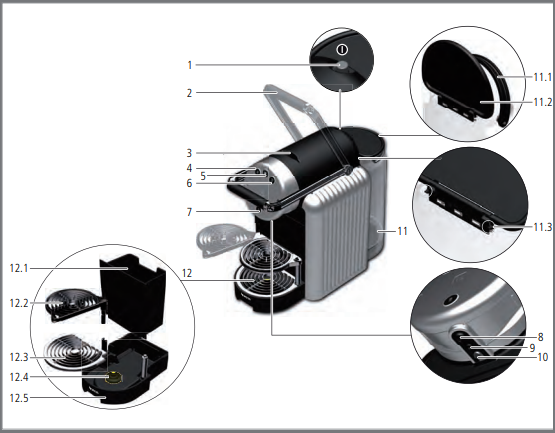

Nespresso Zenius parts overview:
| 1 ON/OFF button | 2 Lever | 3 Capsule insertion slot |
4 Ristretto button (factory setting 25 ml.) | 5 Espresso button (factory setting 40 ml.) | 6 Lungo button (factory setting 110 ml.) |
7 Hot water button (factory setting 125 ml.) | 8 Coffee outlet | 9 Hot water outlet |
| 10 Cup lighting function | 11 Water tank (for 2 l.) | 11.1 Handle |
| 11.2 Lid | 11.3 Fixing hooks on lid | 12 Maintenance module |
12.1 Capsule container for 25 used capsules | 12.2 Espresso cup support + Rotating drip grid | 12.3 Recipe Glass or Mug support + Fixed drip grid |
| 12.4 Floater | 12.5 Drip tray |
